Product Details
Place of Origin: JIANGSU
Brand Name: Solarsonc
Certification: TUV/UN38.3/IEC
Model Number: BG-1144
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD2200-3000/SET
Packaging Details: wooden box/carton
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 SET PER MONTH
Battery Capacity: |
11.44 KWh |
Battery Chemistry: |
Lithium-ion |
Communication Protocol: |
Wi-Fi/Ethernet |
Dimensions: |
1000mm X 500mm X 200mm |
Installation Type: |
Wall Mounted |
Maximum Charge/Discharge Current: |
100A |
Maximum Charge/Discharge Power: |
10kW |
Maximum Voltage: |
400V |
Operating Humidity: |
0-90% RH |
Operating Temperature: |
0-50°C |
Product Name: |

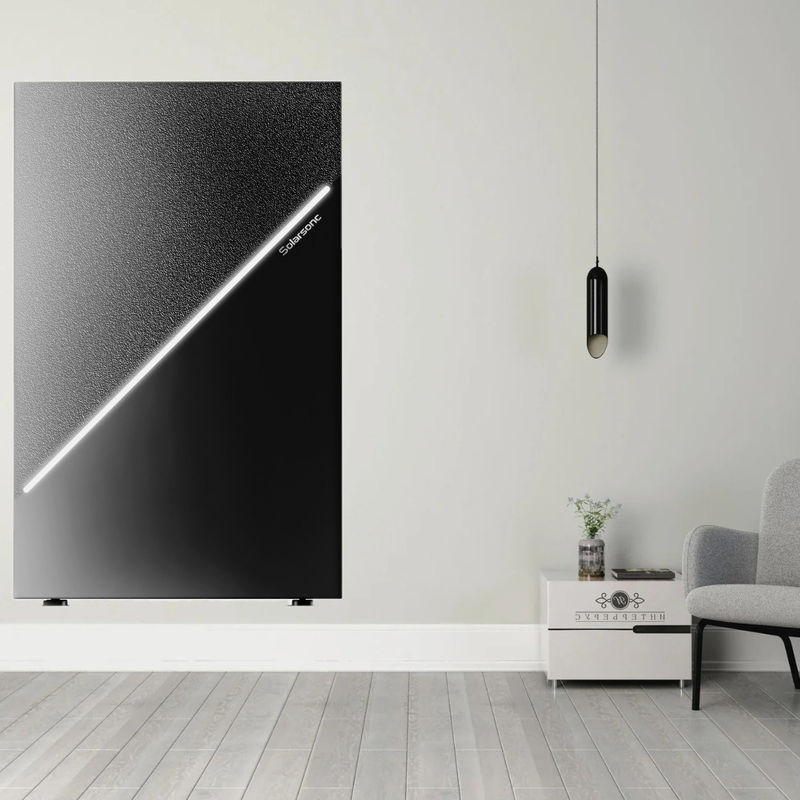

Wall Mounted Battery Storage |
Remote Monitoring: |
Yes |
Safety Certifications: |
CE, FCC |
Warranty: |
5 Years |
Weight: |
50kg |
Battery Capacity: |
11.44 KWh |
Battery Chemistry: |
Lithium-ion |
Communication Protocol: |
Wi-Fi/Ethernet |
Dimensions: |
1000mm X 500mm X 200mm |
Installation Type: |
Wall Mounted |
Maximum Charge/Discharge Current: |
100A |
Maximum Charge/Discharge Power: |
10kW |
Maximum Voltage: |
400V |
Operating Humidity: |
0-90% RH |
Operating Temperature: |
0-50°C |
Product Name: |
Wall Mounted Battery Storage |
Remote Monitoring: |
Yes |
Safety Certifications: |
CE, FCC |
Warranty: |
5 Years |
Weight: |
50kg |
| Cell Technology | LiFePo4 Cylindrical Full Tabs Cell | ||
| Rated Capacity(KWh) | 5.12 | 8.58 | 11.44 |
| Usable Capacity(KWh) | 5.43 | 8.15 | 10.87 |
| Nominal Voltage(V) | 51.2V | ||
| Operating Voltage(V) | 40-57.6V | ||
| Dimensions(W*H*D)(mm/inch) | 620*255*1087 27.17*10.04*42.8 |
||
| Weight(kg/Lb) | 116/255.74 | 134/295.42 | 152/335.1 |
| Recommend Discharge Current(A) | 100 | ||
| Peak Discharge Current(A) | 200 | 300 | 400 |
| Battery Pack Round-Trip Effificiency | >95% | ||
| Depth of Discharge | 90% | ||
| Cycle Life | ≥6000 cycles,(25°C/77°F/DOD 90%) | ||
| Warranty | 10 years | ||
| Communication | CAN | ||
| Scalability | Max.4 Modules in Parallel | ||
| Certificates | CE/IEC62619/UN38.3 | ||
| Cell Certificate | UL 1642 | ||
| OPERATING CONDITIONS | |||
| Operating Temperature(°C/°F) | -20℃~45℃/-4°F~113°F | ||
| Storage Temperature(°C/°F) | -10℃~45℃/14°F~113°F | ||
| Cooling Method | Natural Convection | ||
| Humidity | 0%to100%(No Condensing) | ||
| Altitude(m) | Max.3000 | ||
| Installation Mode | Wall mounted/Floor mounted | ||
| Ip Level | IP65 | ||
