Product Details
Place of Origin: China
Brand Name: Solarsonc
Certification: IEC62619, UN38.3
Model Number: HV28S-1
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: USD 1500-4100/set
Delivery Time: 35days
Payment Terms: T/T
Supply Ability: 100sets/day
Name: |
Stackable ESS For Residential |
Material: |
Steel |
Battery: |
LifePo4 |
Capcity: |
5.72-17.16Kwh |
Output: |
DC 204.8-614.4V |
Name: |
Stackable ESS For Residential |
Material: |
Steel |
Battery: |
LifePo4 |
Capcity: |
5.72-17.16Kwh |
Output: |
DC 204.8-614.4V |

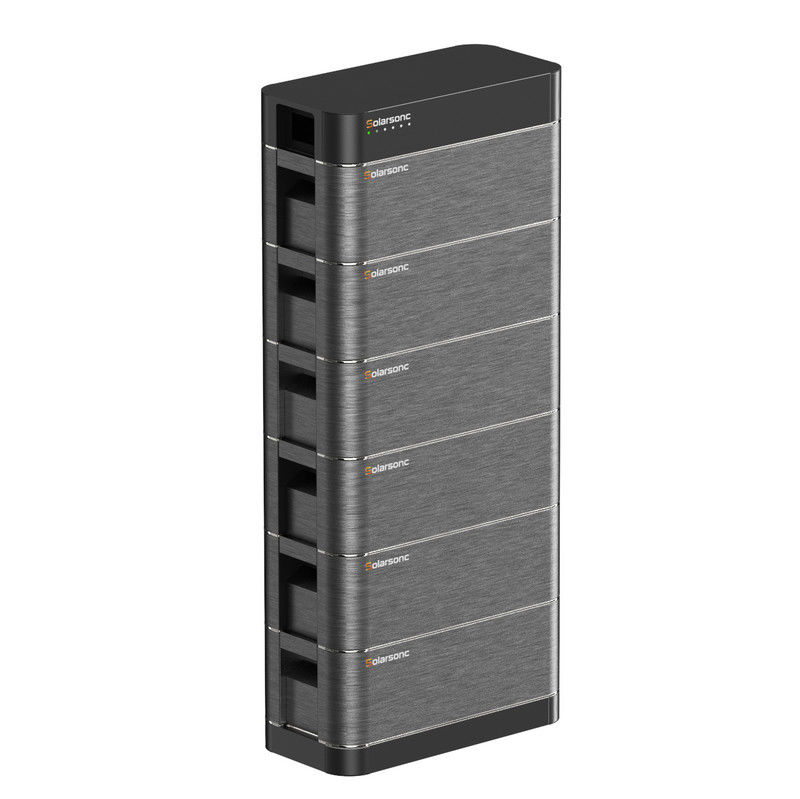

Stackable energy storage system for renewable energy power plant
Lithium battery integrated machine, integrated lithium battery and photovoltaic inverter controller integrated machine, can realize photovoltaic and mains power supply mode, battery or bypass priority can be set, with multiple protections, such as input battery over-voltage protection, under-voltage protection, over-current protection, output under-voltage protection, over-current three-level protection (peak high current, RMS current, peak over-current soft start). Built-in lithium battery can store excess power to meet the uninterrupted use of small outdoor equipment.
| RESIDENTIAL BATTERY | |||
| STORAGE SYSTEM | |||
| GENERAL PARAMETERS | |||
| Battery Module | HV28S-1 102.4V 2.86 kWh | ||
| Cell Technology | LiFePo4 Cylindrical Full Tabs Cell | ||
| Number of | 2 | 4 | 6 |
| Battery Modules | |||
| Rated Capacity [KWh] | 5.7 | 11.4 | 17.16 |
| Usable Capacity [KWh] | 5 | 10 | 15 |
| Nominal Voltage [V] | 204 | 408 | 612 |
| Operating Voltage [V] | 160-230 | 320-467 | 408-691 |
| Dimensions (W*H*D) | 719X680X349 | 719X1159X349 | 719X1640X349 |
| [mm/inch] | 28.3*26.7*13.7 | 28.3*45.6*13.7 | 28.3*64.5*13.7 |
| Weight [kg/Lb] | 71/156.5 | 122 /268.9 | 186/410 |
| Recommend Discharge | 30 | ||
| Current [A] | |||
| Peak Discharge | 80A @1Osec | ||
| Current [A] | |||
| Battery Pack | >95% | ||
| Round-Trip Effificiency | |||
| Depth of Discharge | 90% | ||
| Cycle Life | ≥6000 cycles, (25℃/77℉) | ||
| Warranty | 10 years | ||
| Communication | CAN | ||
| Scalability | Max.6 Modules in Series | ||
| Certificates | CE/IEC62619/UN38.3/IEC63056 /IEC62477-1 | ||
| UL 1642 | |||
| OPERATING CONDITIONS | |||
| Installation Location | Indoor outdoor(Stand) | ||
| Operating Temperature | -20℃~ 45℃ / -68℉ ~ 113℉ | ||
| [℃/℉] | |||
| Storage Temperature | -45℃~70℃/ -113℉ ~158℉ | ||
| [℃/℉] | |||
| Cooling method | Natural Convection | ||
| Humidity | 0% to 100% (No Condensing) | ||
| Altitude [m] | Max.3,000 | ||
| Installation Mode | Stack | ||
