Product Details
Place of Origin: China
Brand Name: Solarsonc
Certification: IEC62619, UN38.3
Model Number: LV28-1
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: USD 2000-3000/set
Delivery Time: 35days
Payment Terms: T/T
Supply Ability: 100sets/day
Material: |
Steel |
Battery: |
LifePo4 |
Capcity: |
11.44Kwh |
Output: |
DC 51.2V |
Material: |
Steel |
Battery: |
LifePo4 |
Capcity: |
11.44Kwh |
Output: |
DC 51.2V |

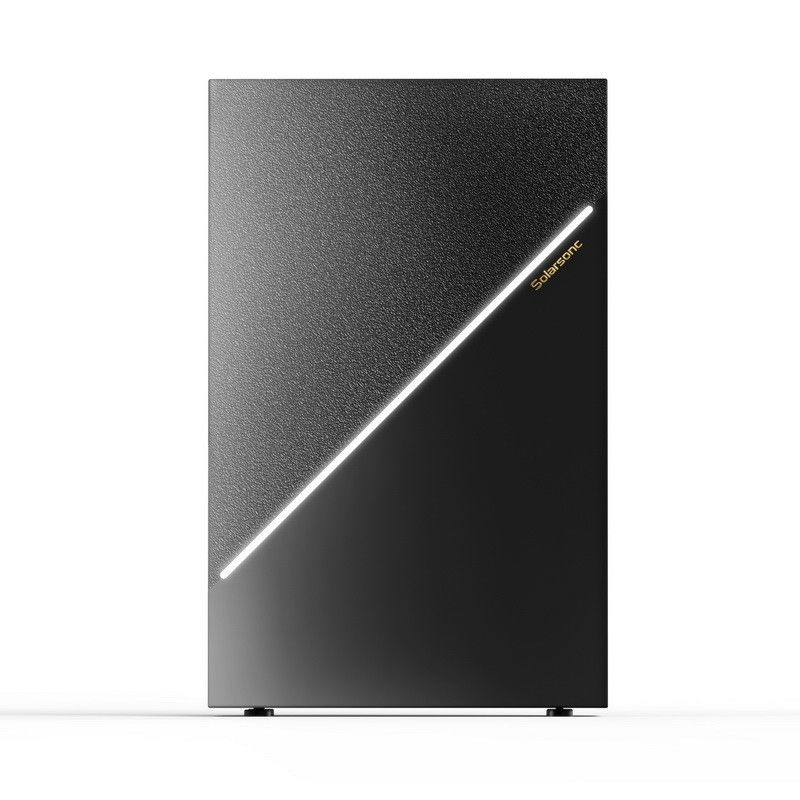

10kw Wall Mounted Battery Storage Bess Energy System
1. Using liFePO4 battery cells,low internal resistance,and long service life.
2. Itelligent system, low loss,high conversion rate,strongstability, and reliable operation.
3. 3 layer BMS sytem management,monitoring and management of the whole system.
4. Using Grade A battery clls, with high cycle times, long service life, low overall operating costs. 5.LCD display screen, operate parameters setting, data check in real-time. 6.Integrated design, simple itsalltion, plug and play.
| GENERAL CHARACTERISTICS | |||
| Cell Technology | LiFePO4 Cylindrical Full Tabs Cell | ||
| Rated Capacity [KWh] | 5.7 | 8.6 | 11.4 |
| Usable Capacity [KWh] | 5.1 | 7.7 | 10.3 |
| Nominal Voltage [V] | 51.2 | ||
| Operating Voltage [V] | 40-57.6 | ||
| Dimensions (W*H*D) [mm/inch] | 480X240X680 19x9.4x26.7 |
480X240X930 19x9.4x36.6 |
480X240X1210 19x9.4x47.6 |
| Weight [kg/Lb] | 60/132 | 85/187 | 115/253 |
| Recommend Discharge Current [A] | 100 | 150 | 200 |
| Peak Discharge Current [A] | 200 | 300 | 400 |
| Battery Pack Round-Trip Effificiency | >95% | ||
| Depth of Discharge | 90% | ||
| Cycle Life | ≥6000 cycles, (25°C/77°F) | ||
| Warranty | 10 years | ||
| Communication | CAN | ||
| Scalability | Max. 4 Modules in Parallel | ||
| Certificates | CE/IEC62619/UN38.3 | ||
| UL 1642 | |||
| OPERATING CONDITIONS | |||
| IP Level | P20/IP65 | ||
| Operating Temperature [°C/°F] | -20°C ~ 45°C / -68 ~ 113 | ||
| Storage Temperature [°C/°F] | -45°C~70°C / -113℉~158 | ||
| Cooling Method | Natural Convection | ||
| Humidity | 0% to 100% (No Condensing) | ||
| Altitude [m] | Max. 3,500 | ||
| Installation Mode | Wall-mounted/Floor-Mounted | ||
| *1 77, @90% DOD, 0.5C charging |
FAQ
Q1. Can I have a sample order?
A: Of Course, we welcome to place sample order even we can help you customized your sample according to your requirements.
Q2. What about the lead time?
A:Sampleusually needs10-15 days, mass production time needs 4-5 weeks, it depends on order quantity and battery requirement.
Q3.How can guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
Q4. What is the order procedure?
Step 1: Receive Customer requirements
Step 2: Offer solutions accordingly
Step 3: Sample order placement and Quality confirmation from customer side
Step 4: Batch order with after sales service
Q5. Do you offer OEM and ODM solutions?
A:Yes, we do offer OEM and ODM solution based requirements. Under OEM terms we can place customer’s brand logo on the product. MOQ is very small for OEM service, Please consult us before placing the order.
Q6. Are you a manufacturer or a trade company?
A: We are a manufacturer, specialize in making ESS with Lithum Battery, BMS, LifePo4 Battery PACK and LFP Lithum cells.
Q7. How much is the freight cost of samples?
A: It’s depends on weight, packing size and destination. Please contact us if you need, we can get the quote for you.
Q8. What is the shipping method?
A: It could be shipped by sea, by air or by express (EMS,UPS,DHL,TNT,FEDEX and etc.)Please confirm with us before placing orders.
Q9. What is the payment terms?
A: T/T,L/C,Western Union is available. Please contact us.
Q10. What is the payment condition?
A: 30% deposit to confirm the order,70% balance before the shipment.
Q11. what can you buy from us?
BESS Battery/Residential BESS/All In One ESS/Wall Mounted Battery Storage/Commercial Battery Storage Systems/12V Lifepo4 Battery/Lifepo4 Portable Power Station/Lifepo4 Battery Module/Lifepo4 Battery Cell/Dc Ev Charger/Ac Ev Charger/Single Phase Hybrid Solar Inverter.
