Home > products > EV Charger > 120kw Dc Ev Charger For Parking Lot In Vietnam

120kw Dc Ev Charger For Parking Lot In Vietnam

Product Details

Place of Origin: JIANGSU

Brand Name: Solarsonc

Certification: CE/TUV/IEC

Model Number: DC120

Payment & Shipping Terms

Minimum Order Quantity: 1SET

Price: USD5000-15000/SET

Packaging Details: wooden box

Delivery Time: within 30 working days

Supply Ability: 3000 SETS PER MONTH

Get Best Price
Highlight:

120kw dc ev charger

,

parking lot dc ev charger

Certifications:
CE, UL, TUV
Working Temperature:
-30℃~+55℃
Connection:
CCS2,CCS1,Chademo,GBT
Input Rating:
3-phase 400V±15% AC
Payment:
Mobile APP / RFID / POS
Machine Output Power:
120KW
Starting Mode:
RFID Card, APP
Communication Protocols:
OCPP1.6J Or OCPP2.0
Dimension(Wx Dx H):
1006mm*640mm*1890mm
Cable Length:
5m Or 7m
Certifications:
CE, UL, TUV
Working Temperature:
-30℃~+55℃
Connection:
CCS2,CCS1,Chademo,GBT
Input Rating:
3-phase 400V±15% AC
Payment:
Mobile APP / RFID / POS
Machine Output Power:
120KW
Starting Mode:
RFID Card, APP
Communication Protocols:
OCPP1.6J Or OCPP2.0
Dimension(Wx Dx H):
1006mm*640mm*1890mm
Cable Length:
5m Or 7m

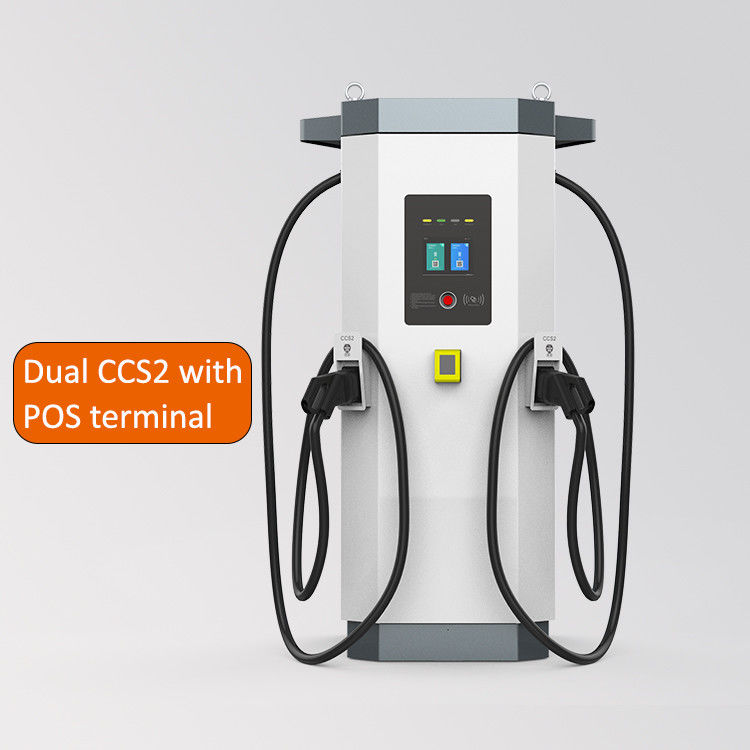

120kw Dc Ev Charger For Parking Lot In Vietnam



120kw Dc Ev Charger For Parking Lot In Vietnam 0120kw Dc Ev Charger For Parking Lot In Vietnam 1120kw Dc Ev Charger For Parking Lot In Vietnam 2

Solarsonc DC120 - The Ultimate EV DC Charging Solution

Solarsonc DC120 is a high-quality electric vehicle power charger designed for efficient and intelligent charging of electric vehicles. With its advanced technology and user-friendly features, it is the perfect solution for both personal and commercial use.



The DC120 model is the latest addition to Solarsonc's range of EV charging stations. It is designed to provide fast and efficient charging for electric vehicles, making it the perfect choice for busy roads and highways.



The DC120 is designed to withstand extreme temperatures, making it suitable for use in various weather conditions. It can operate efficiently in temperatures ranging from -30℃ to +55℃, ensuring reliable performance all year round.



The DC120 can be easily installed in a stand-up position, making it compact and space-saving. This makes it perfect for use in parking lots, garages, and other public areas, where space is limited.



Application Scene:

The Solarsonc DC60 is suitable for a wide range of application scenes, including:

  • Residential areas - The DC60 can be installed in residential areas, allowing electric vehicle owners to conveniently charge their vehicles at home.
  • Commercial buildings - The DC60 is perfect for use in commercial buildings, such as shopping malls, hotels, and office complexes, providing a fast and efficient charging solution for employees, customers, and guests.
  • Public parking lots - The DC60 can be installed in public parking lots, allowing for easy and convenient charging for electric vehicle owners on the go.
  • Highways and rest stops - The DC60 is ideal for use on highways and rest stops, providing a reliable and fast charging solution for long-distance travelers.

With its high-quality materials, advanced technology, and versatile application scenes, Solarsonc DC60 is the ultimate EV DC charging solution for all electric vehicle owners.





Features:

1.Flexible Charging Port Options

  Support CCS1,CCS2,CHAdeMO or GBT connector.

  Charging two vehicles simultaneously.



2.High-Speed Charging

  Max output power 60kw~150kW,average charging time 30~60mins.



3.Easy Operating

  White-labeled hardware and software,manage multi-

  ple charging stations via cloud-based CSMS.



4. Safety &Reliable

 CE Certified quality,IP55 rated for outdoor application,

  with a standard 2-year warranty.



Technical Parameters:

Power 60kW/90kW/120kW/150kW/180kW/200kW
Input Input Voltage 400V±15%/440V±15%/480V±15%
Input Voltage Type TN-S
Working Frequency 45~65Hz
Power Factor ≥0.99
Efficiency ≥94%
Output Rated Voltage CHAdeMO 500Vdc;CCS 1000Vdc;GBT 1000Vdc
Max Output Current CHAdeMO 125A;CCS 200A;GBT 250A
Interface Display 8"LCD Touch Screen
Emergency Stop Button Yes
Payment Mobile APP /RFID /POS
Comm



Network Connection



4G(GSM or CDMA)/Ethernet /WIFI



Communication Protocols



OCPP1.6J or OCPP2.0



Working

Environment

Working Temperature -30℃~+50℃
Storage Temperature -40℃~+70℃
Operating Humidity <95%Non-Condensing
Protection IP55
Acoustic Noise <60dB
Cooling Method Forced Air-Cooling
Mechanica Dimension(Wx Dx H) 1006mm*640mm*1890mm
Weight 310 ~420kg
Cable Length 5m or 7m
Regulation Certificate TUV CE/IEC61851-1/IEC61851-23/IEC61851-21-2
Charging Interface DIN70121/DIN70122 /ISO15118

Benefits of Customization

By customizing your Solarsonc DC120EV Charger, you can:

  • Enhance your brand image and visibility with personalized branding.
  • Create a cohesive and professional look with color options.
  • Provide a seamless and convenient charging experience for your customers with customized charging options.
  • Maximize space and efficiency with customized installation options.



Packing and Shipping:

DC Ev Charger Packaging and Shipping
Packaging:
  • Each DC Ev Charger unit is carefully packaged in a sturdy cardboard box.
  • The box is designed to protect the product during transportation and storage.
  • Inside the box, the charger is wrapped in protective foam to prevent any damage during shipping.
  • Accessory cables and manuals are also included in the packaging.
Shipping:
  • We offer worldwide shipping for our DC Ev Charger.
  • Shipping costs and delivery times may vary depending on the destination.
  • For domestic shipping, we use reliable courier services to ensure timely delivery.
  • For international shipping, we work with trusted logistics partners to ensure safe and efficient transport.
  • Customers will receive a tracking number to monitor the status of their shipment.


FAQ:

  • Q: What is the brand name of this product?
    A: The brand name is Solarsonc.
  • Q: What is the model number of this product?
    A: The model number is DC120.
  • Q: Where is this product manufactured?
    A: This product is manufactured in JIANGSU.
  • Q: What type of charger is DC120?
    A: DC120 is a DC fast charger.
  • Q: What is the charging capacity of DC120?
    A: DC120 has a charging capacity of 120kW.
