Product Details
Place of Origin: JIANGSU
Brand Name: Solarsonc
Certification: CE, UL, TUV
Model Number: DC60
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: USD4500-15000/SET
Packaging Details: Carton box and wooden box
Delivery Time: within 30 days
Supply Ability: 5000 SETS PER MONTH
Payment: |
Mobile APP / RFID / POS |
Starting Mode: |
RFID Card, APP |
Input Rating: |
3-phase 400V±15% AC |
Install: |
Stand Up |
Color: |
White |
Efficiency: |
>94% |
Connection: |
CCS2,CCS1,Chademo,GBT |
Ac Input Voltage: |
AC380V±15% ,3P+N+PEAC |
Altitude Cooling Method: |
≤2000m Natural Cooling |
Charging Current: |
100A |
Charging Port: |
CCS Combo 2 |
Communication Protocol: |
OCPP 1.6J |
Input Voltage: |
AC380V |
Maximum Power: |
60kW - 240kW |
Metrology Class: |
0.5 |
Payment Options: |
Credit Card, Tesla Account, Or Supercharger Credit |
Rated Power: |
40KW/60kW/90kW/120kW/150kW/180kW/240kW |
Payment: |
Mobile APP / RFID / POS |
Starting Mode: |
RFID Card, APP |
Input Rating: |
3-phase 400V±15% AC |
Install: |
Stand Up |
Color: |
White |
Efficiency: |
>94% |
Connection: |
CCS2,CCS1,Chademo,GBT |
Ac Input Voltage: |
AC380V±15% ,3P+N+PEAC |
Altitude Cooling Method: |
≤2000m Natural Cooling |
Charging Current: |
100A |
Charging Port: |
CCS Combo 2 |
Communication Protocol: |
OCPP 1.6J |
Input Voltage: |
AC380V |
Maximum Power: |
60kW - 240kW |
Metrology Class: |
0.5 |
Payment Options: |
Credit Card, Tesla Account, Or Supercharger Credit |
Rated Power: |
40KW/60kW/90kW/120kW/150kW/180kW/240kW |
Features:
Flexible Charging Port Options
Support CCS1,CCS2,CHAdeMO or GBT connector.
Charging two vehicles simultaneously.
High-Speed Charging
Max output power 60kw~150kW,average charging
time 30~60mins.
Easy Operating
White-labeled hardware and software,manage multi-
ple charging stations via cloud-based CSMS.
Safety &Reliable
CE Certified quality,IP55 rated for outdoor application,
with a standard 2-year warranty.
Benefits:
■ Max 125A/200A 1000V
■ Durable and safe for both indoor and outdoor use
■ 8 "LCD touch screen with multi-language interface
■ SAE Combo,CHAdeMO,GBT optional charging connector
■ Network connection via WIFl,Ethernet,4G
■ OCPP 1.6J,OCPP 2.0
■ Dynamic load management
■ Software free-update
| Input | Input Voltage | 400V±15%/440V±15%/480V±15% |
| Input Voltage Type | TN-S | |
| Working Frequency | 45~65Hz | |
| Power Factor | ≥0.99 | |
| Efficiency | ≥94% | |
| Output | Rated Voltage | CHAdeMO 500Vdc;CCS 1000Vdc;GBT 1000Vdc |
| Max Output Current | CHAdeMO 125A;CCS 200A;GBT 250A | |
| Interface | Display | 8"LCD Touch Screen |
| Emergency Stop Button | Yes | |
| Payment | Mobile APP /RFID /POS | |
| Comm |
Network Connection |
4G(GSM or CDMA)/Ethernet /WIFI |
|
Communication Protocols |
OCPP1.6J or OCPP2.0 |
|
|
Working Environment |
Working Temperature | -30℃~+50℃ |
| Storage Temperature | -40℃~+70℃ | |
| Operating Humidity | <95%Non-Condensing | |
| Protection | IP55 | |
| Acoustic Noise | <60dB | |
| Cooling Method | Forced Air-Cooling | |
| Mechanica | Dimension(Wx Dx H) | 1006mm*640mm*1890mm |
| Weight | 310 ～420kg | |
| Cable Length | 5m or 7m | |
| Regulation | Certificate | TUV CE/IEC61851-1/IEC61851-23/IEC61851-21-2 |
| Charging Interface | DIN70121/DIN70122 /ISO15118 |
*Please note that this is preliminary data—the final product and data are subject to change.

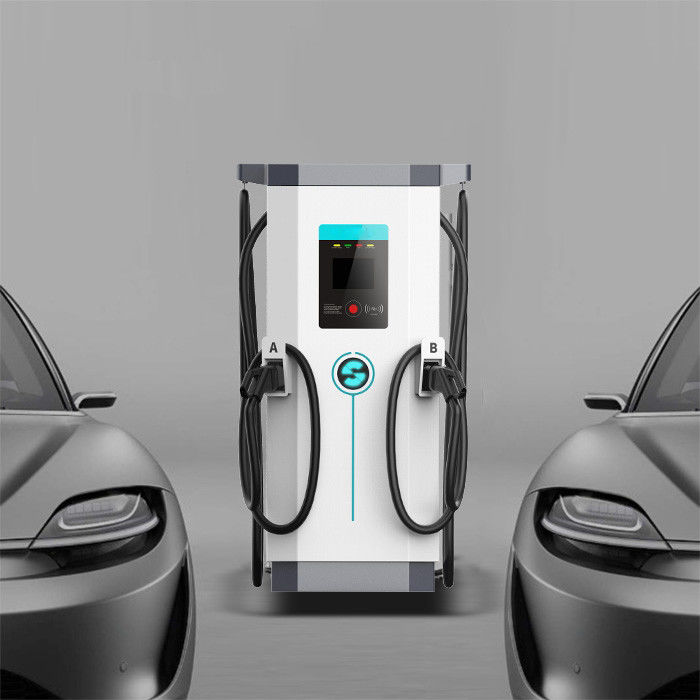

The DC Ev Charger - Solarsonc is designed to provide a fast and efficient charging solution for electric vehicles. With its advanced technology and high-quality components, it offers a reliable and safe charging experience for electric vehicle owners.
EV DC Charging Station - The Solarsonc DC Ev Charger is a powerful charging station that can provide up to 60kW of charging power to electric vehicles.
DC Charging Point - With its compact and modern design, the Solarsonc DC Ev Charger can easily blend in with any environment and provide a convenient charging point for electric vehicles.
Electric Vehicle Power Charger - The Solarsonc DC Ev Charger is specifically designed for electric vehicles, ensuring a safe and efficient charging process for all types of electric vehicles.
